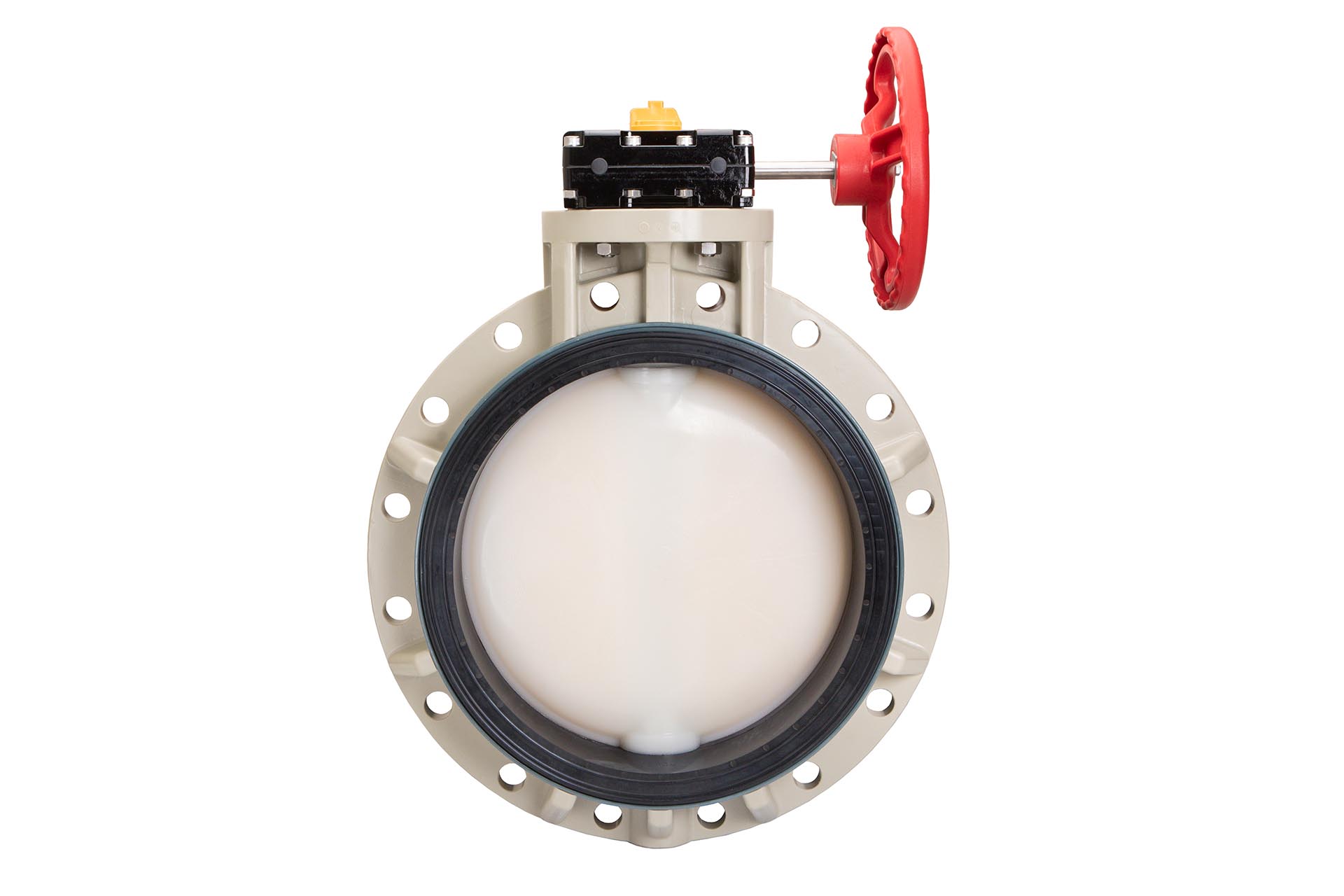

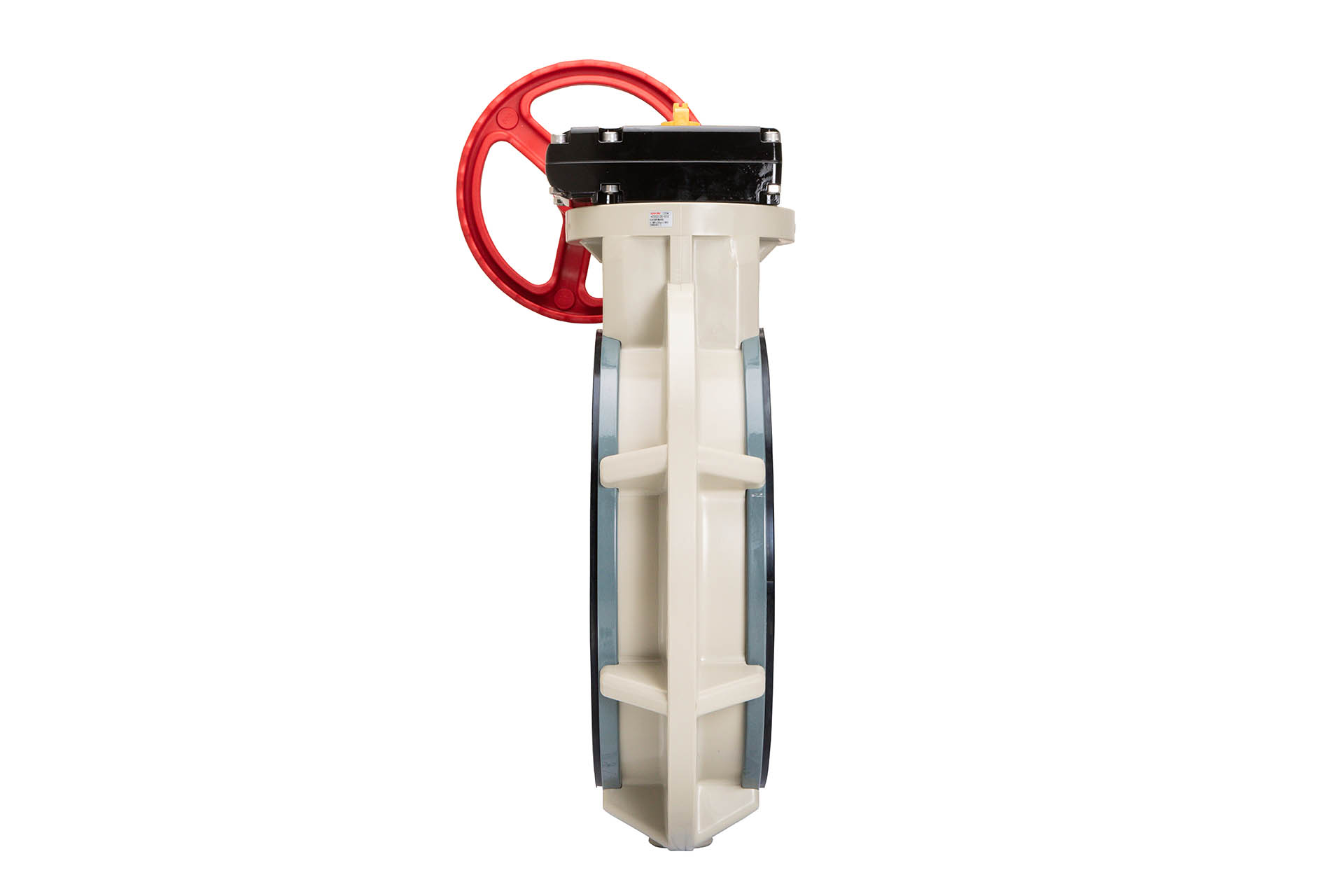

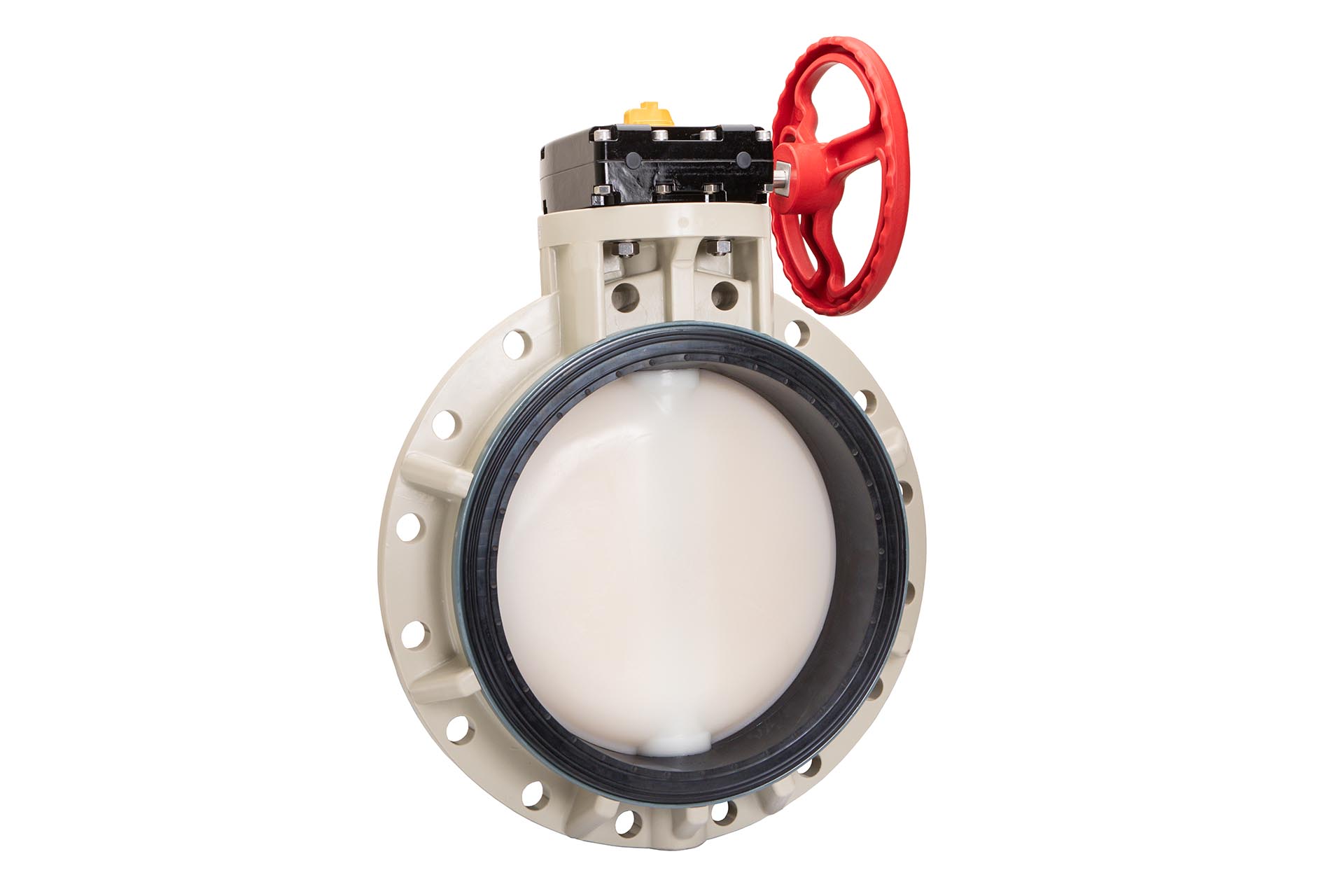

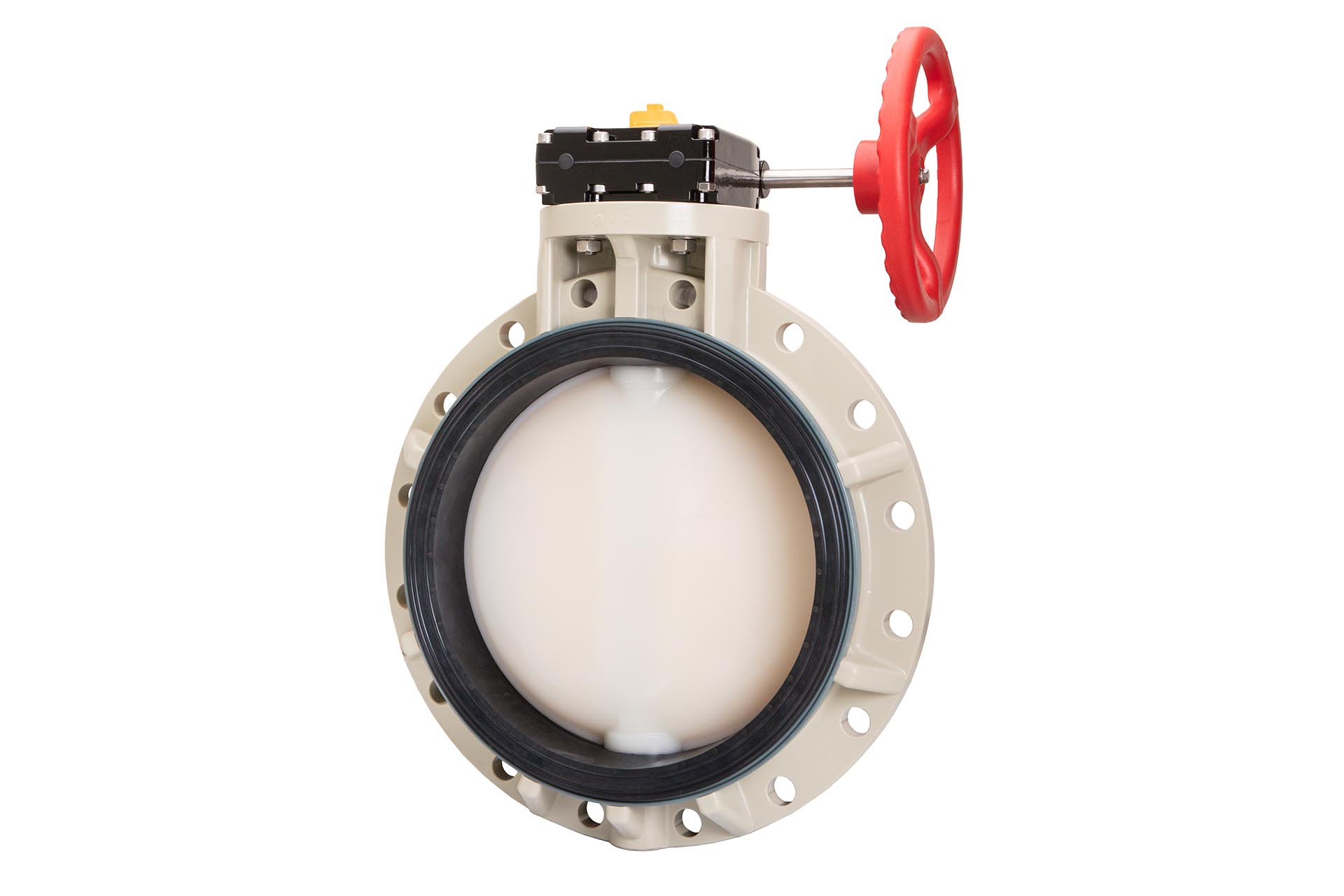

The Type 56 (DN400) valve is a quarter-turn valve with equal percentage type flow characteristics. This valve is ideal for chemical processing and wastewater applications and has the advantage of a robust construction with a one-piece body and a full-plastic gear box. Strong sealing on the elastomer seal in both flow directions is ensured. It provides moderate flow control and therefore can be used for both on/off and modulating service.
Type 56 with lever operator butterfly valve which metal parts are reduced as much as possible.
Application of modular design on top flange provides the valve with flexible and easy change of operation types, from lever to gear and from manual to automatic and so on.
Application of newly innovative locking device(patent pend-ing)for lever type gives the valve opening degrees by 19 levels. And also handle lever with locking hole provides one solution against wrong handle operation.
Symmetric design on top flange offers easy change of handle lever mounting direction at working site.
Sizes Available:
400mm - 400mm
Body Material:
Seal Material / O-Ring:
Connection / Flanged:
JIS10K, DIN, ANSI
Socket:
N/a
Thread:
N/a
