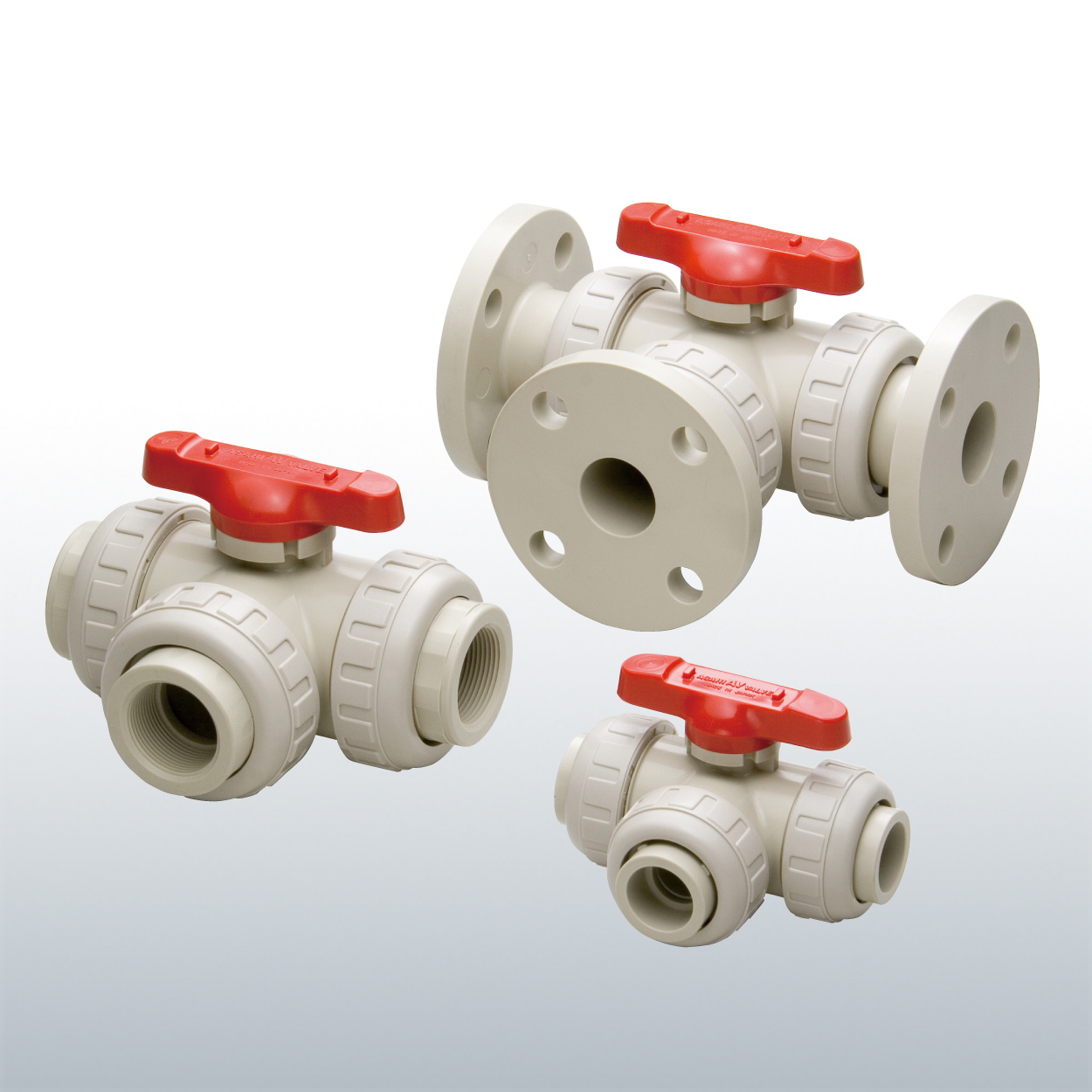

The Horizontal 3-way Ball Valve’s T-shaped flow path allows an easy switch of flow channels. This valve’s optimized design is ideal for skid unit applications.

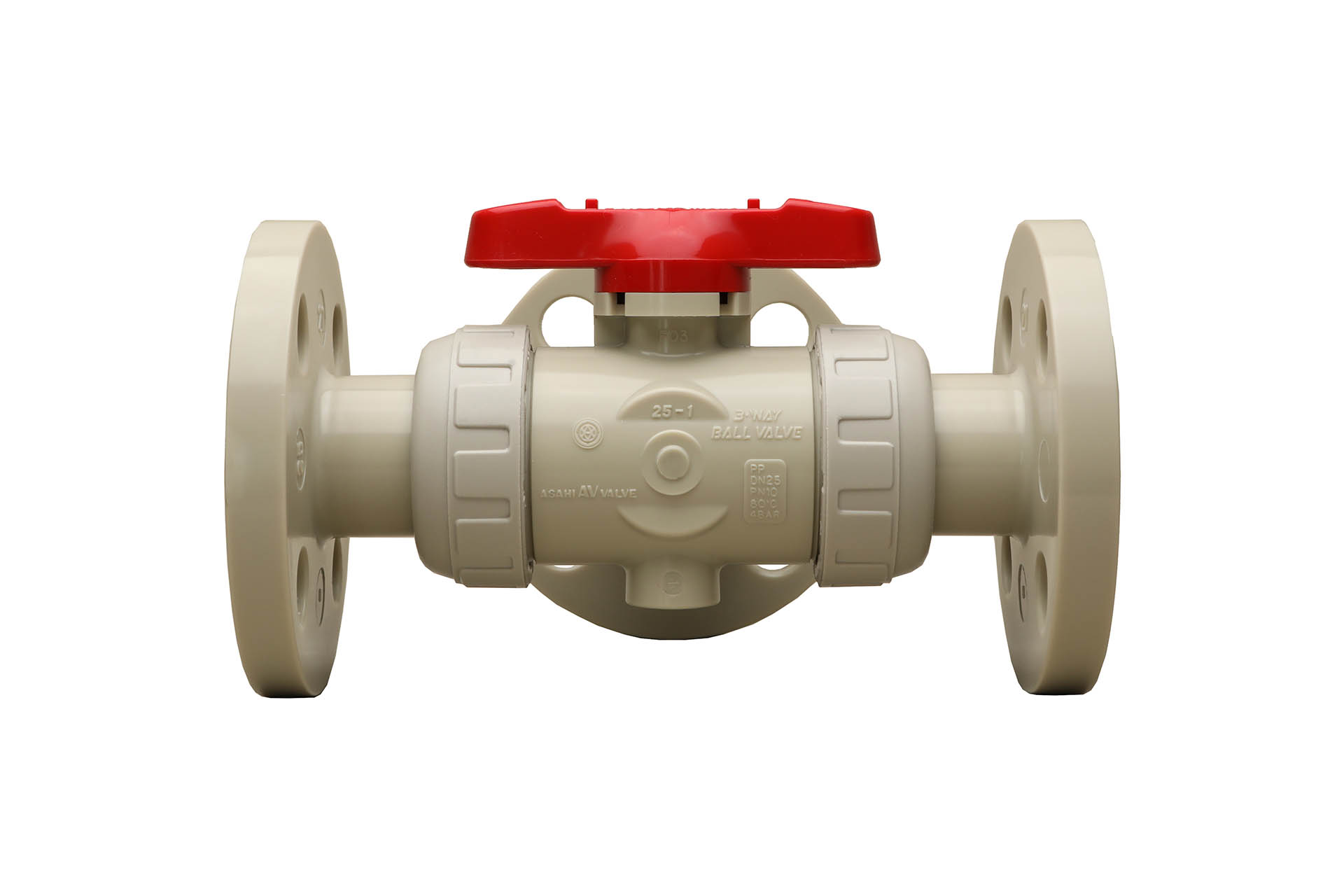

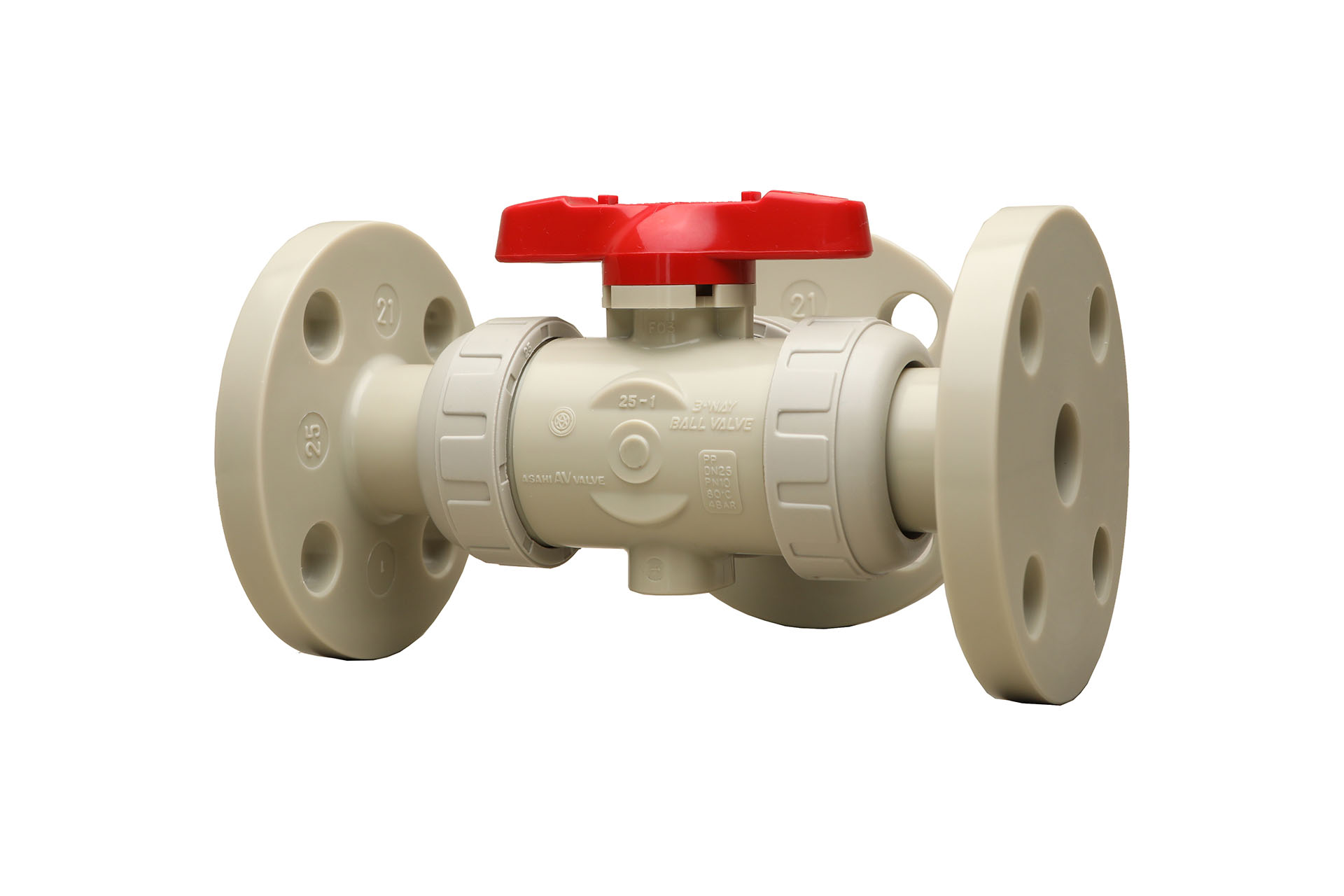

The 3-Way Ball Valve Type 23H is horizontal model(T port).
a) Compact and Economic
b) Reversible Flow Direction
c) Equipped ISO Mounting Flange
d) Interchangeable with Ball Valve Type21
Sizes Available:
25mm - 40mm
Body Material:
Seal Material / O-Ring:
Connection / Flanged:
JIS10K, DIN PN10, ANSI CLASS150
Socket:
JIS, DIN, ANSI
Thread:
Rc, Rp, NPT
