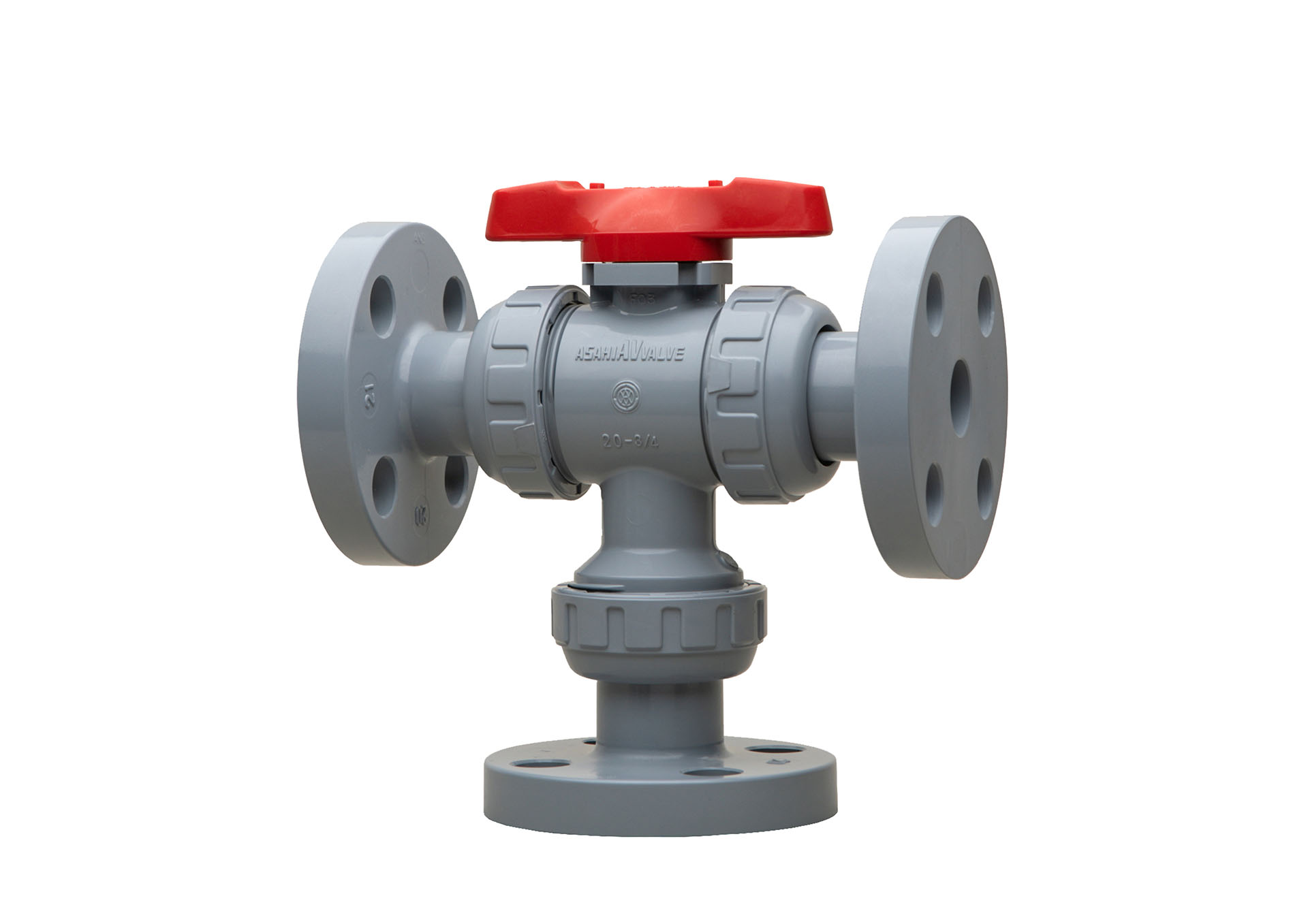

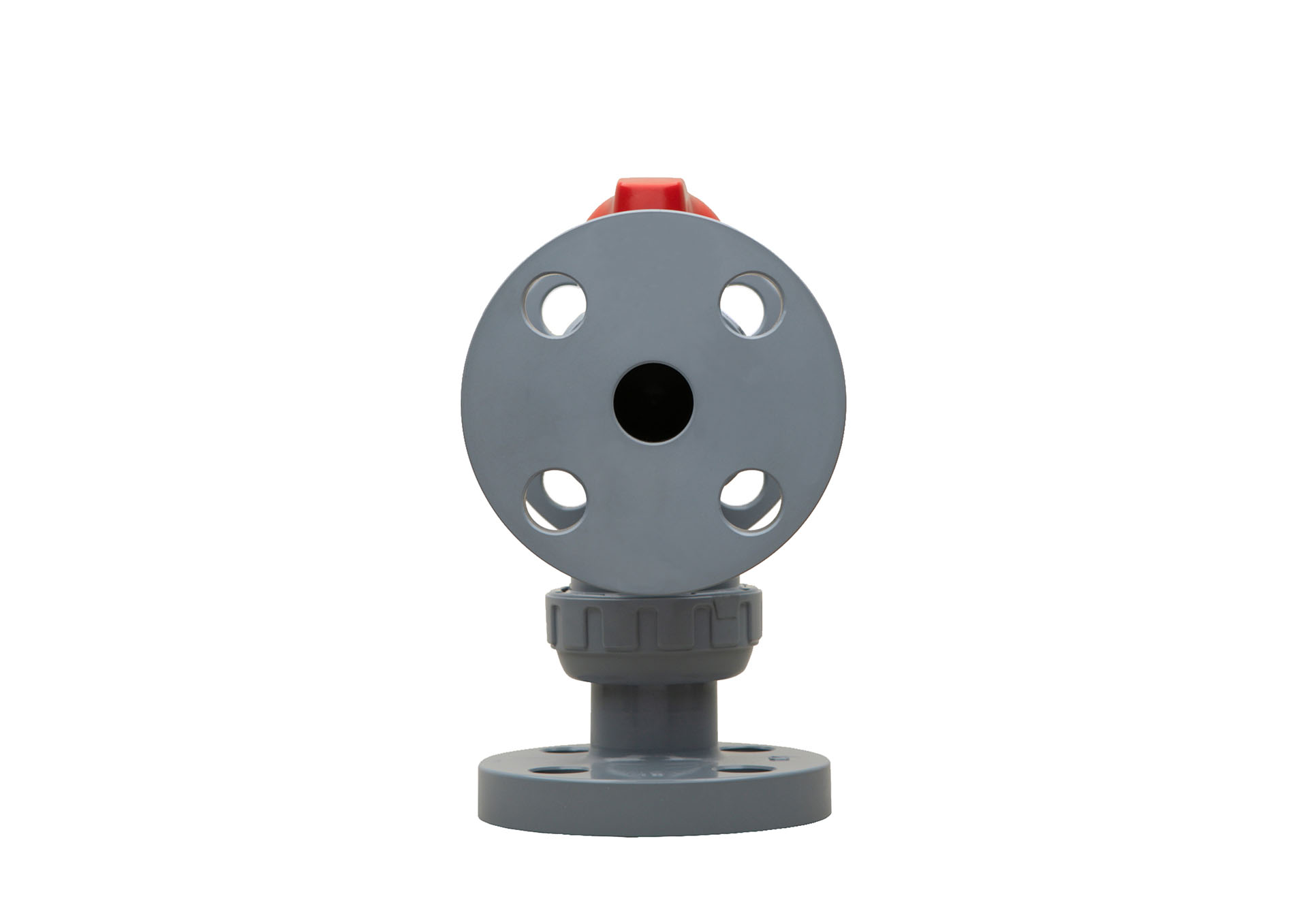

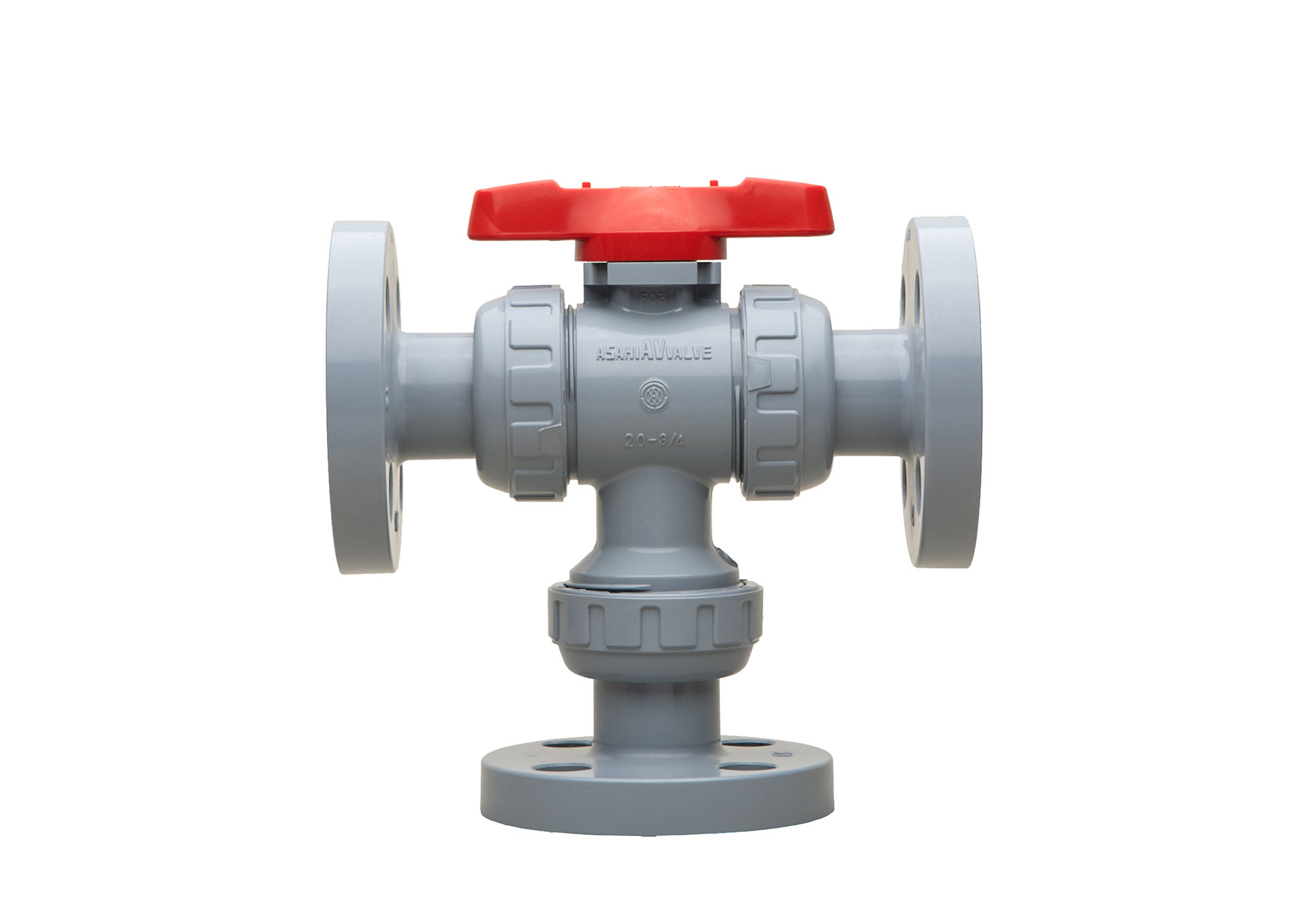

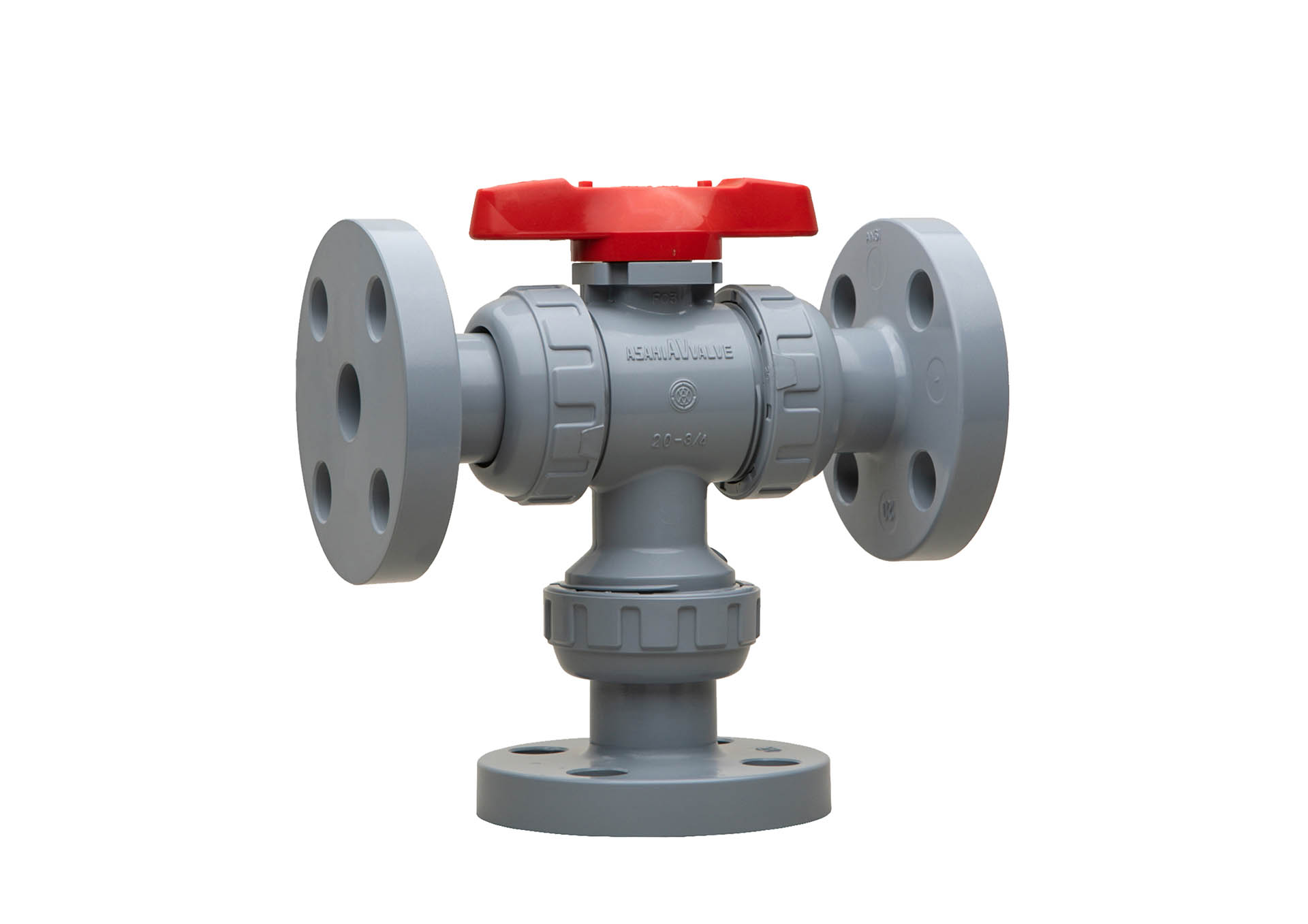

Ball Valve Type 23 is a 3-way valve with a multiport ball that simplifies piping and eliminates the need for an additional valve and tee fitting. Fluid flow direction is governed by an interchangeable ball in the center of the valve. Because this ball can be swapped out to offer a number of different flow patterns, the Type 23 valve is customizable to specific applications. The balls are available in L, Double L, Cross and T-ports.
The 3-Way Ball Valves allows two flow patterns, using one valve. The valve is suitable for a pipeline which requires two ball valves and a tee. That is, the 3-Way Ball Valves is economic because it makes piping compact and saves space.
The 3-Way Ball Valve is based on the Asahi true union ball valve design which can be installed or removed only by tightening or loosening its union nut.
This new feature provides for easier mounting of actuators on valves.
The face to face dimensions, as well as the connecting parts, end connectors and union nuts, are the same as the ball valve Type21.
Double O-ring seal on stem for an added protection. W-L port ball and *Cross port ball are available upon request. Note: Cross port ball is available at the size of 15mm (1/2inch) up to 50mm (2inch). Built-in spanner wrench on the handle for valve disassembly and assembly.
Sizes Available:
15mm - 100mm
Body Material:
Seal Material / O-Ring:
Connection / Flanged:
JIS5K, JIS10K, DIN PN10, ANSI CLASS150
Socket:
JIS, DIN, ANSI
Thread:
Rc, Rp, NPT
