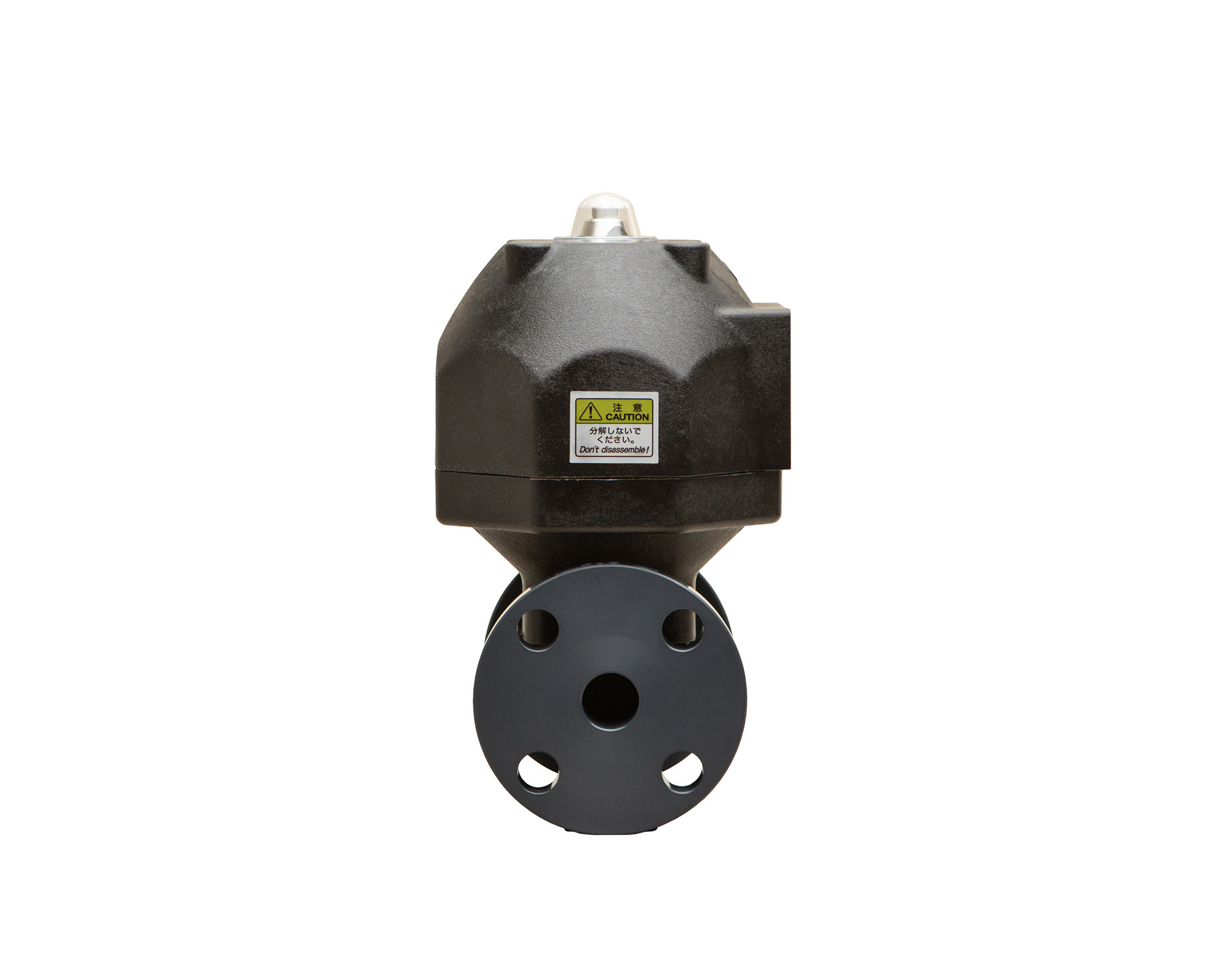

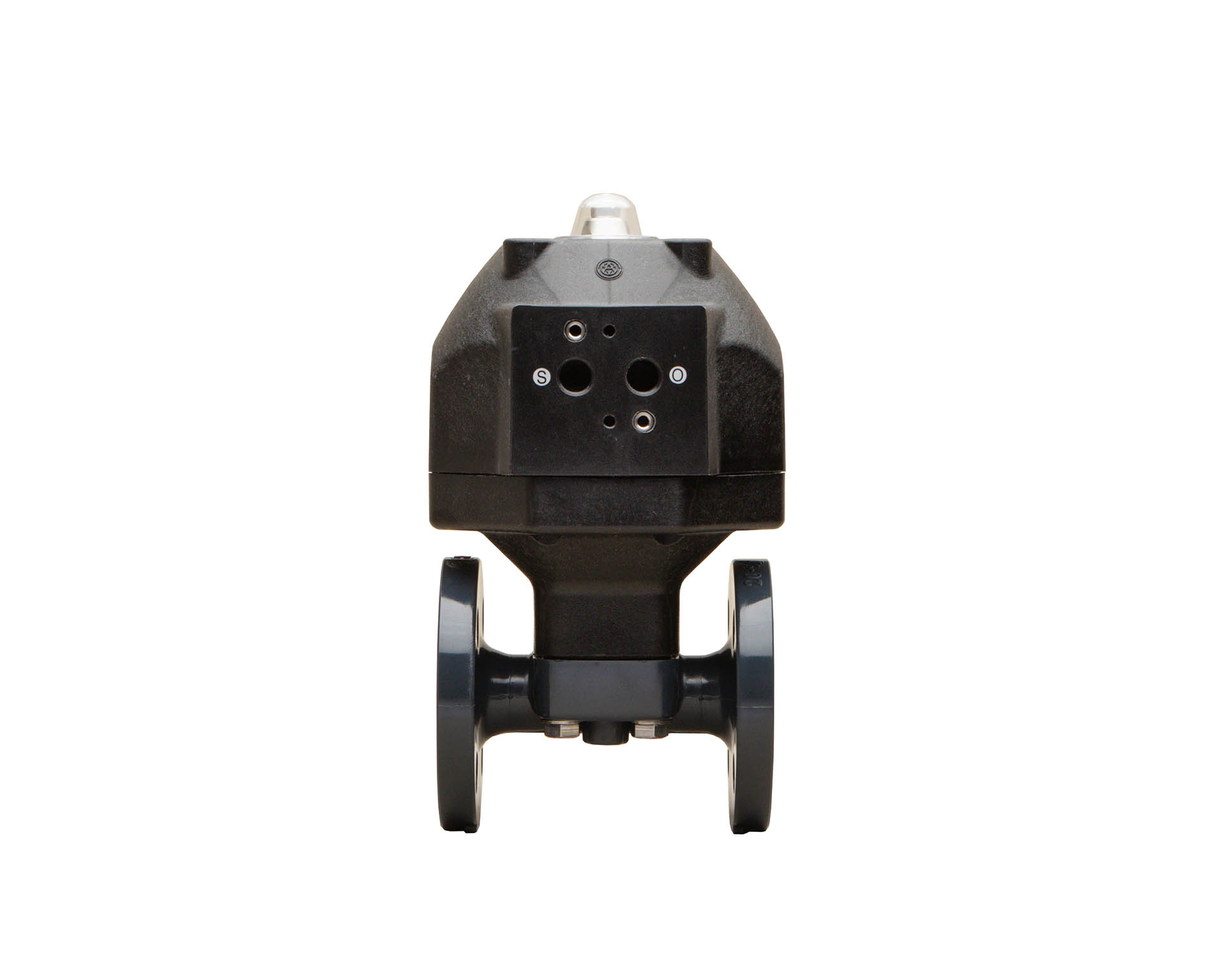

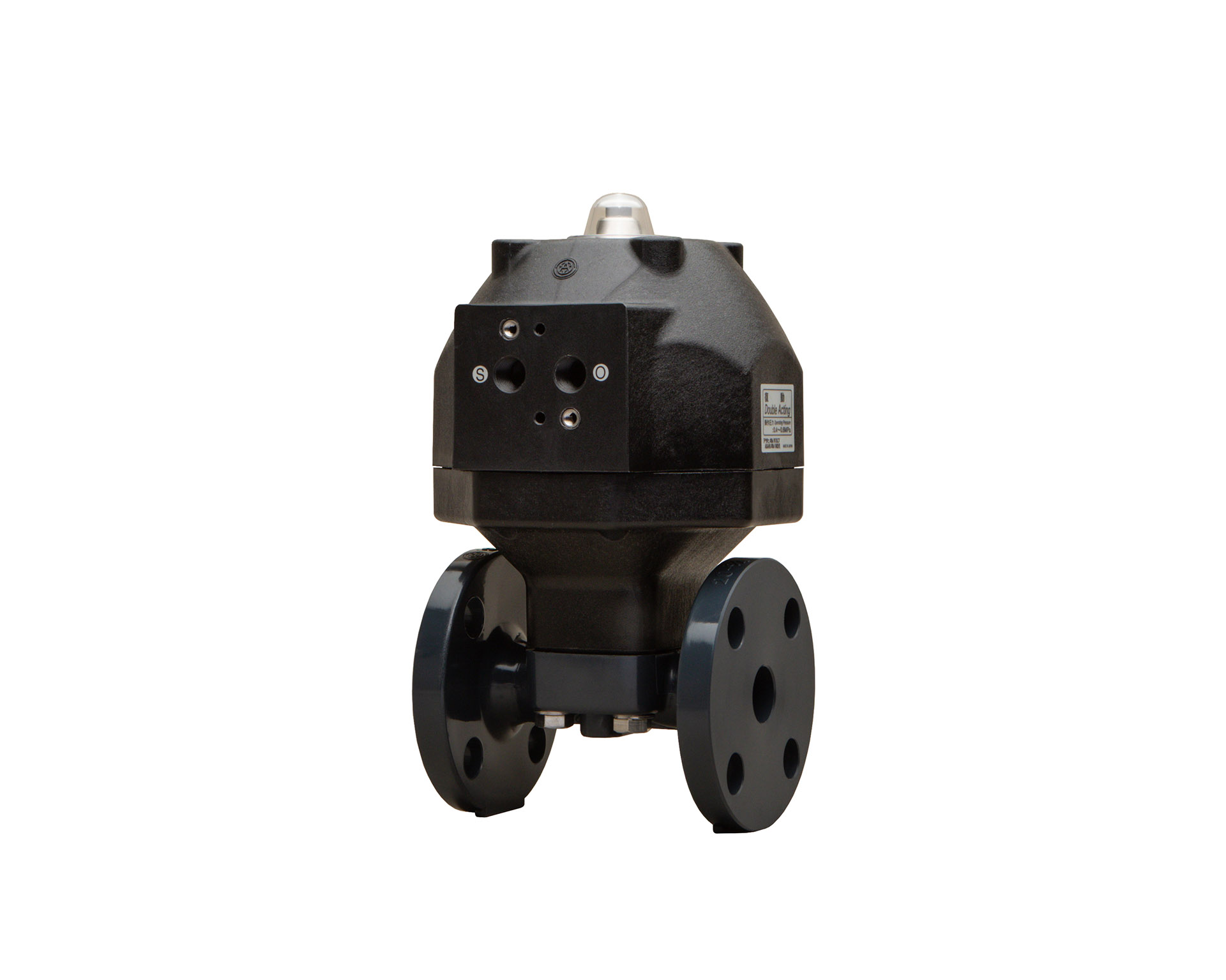

The Pneumatic Diaphragm Valve Type 14 is made of solid thermoplastic materials for maximum corrosion resistance has a one-piece molded construction body without production joints for socket or flange, and increases safety and durability to the maximum level. It features excellent body-to-bonnet sealing performance, weir design for excellent throttling capabilities, and built-in travel stop to prevent over-tightening and eliminate compressive strain. Bubble-tight sealing can be achieved even in tough applications.
The Actuator made of resin is Light and Compact.
NAMUR Standard is applied for Air Piping.
All optional Equipment (except positioner) can easily be added or removed in the field.
A Closing Travel Stop Mechanism is Standard.
Sizes Available:
15mm - 50mm
Body Material:
Seal Material / O-Ring:
Connection / Flanged:
JIS10K, DIN PN10, ANSI CLASS 150
Socket:
JIS, DIN, ANSI
Thread:
Rc, Rp, NPT
